SC APC CCTC Fiber Optics Accessories

Product Categories
Shenzhen CY COM Product Co., Ltd.
Contact Now

SC APC CCTC Fiber Optics Accessories

Brand Name : CY COM

Model Number : SC

Certification : ISO9001:2015 , ISO14001:2015, RoHS

Place of Origin : Shenzhen , China

MOQ : 100pcs

Payment Terms : Western Union, T/T

Supply Ability : 10000pcs/day

Delivery Time : 3-7 dasys

Packaging Details : PE bag

Ferrule End-face : UPC, APC(8°）

Ferrule brand : CCTC

Boot diameter : 0.9/2.0/3.0mm

Fiber type : SM / MM

Color : Blue / Green / Customized

Structure : Simplex / Duplex

Boot type : Hollow

Material : PEI / FBT

Contact Now

SC PC 0.9 2.0 3.0 SM MM Fiber Optic Patchcord Connector and Ceramic Ferrule

General Description

Optical Terminators are functional devices using Metal-lon Doped fibers. These products prevent the reflection of light that are present at open end systems. Fiber optic terminator can terminate unused fiber connector ports in fiber optic systems . Fiber opticterminators are passive components that absorb light coming from unterminated connector plugs. By minimizing the reflected power, the terminator can reduce signal degradation in digital and analog systems.

Main Features

Return Loss: UPC >55 dB,
APC>65 dB Back Reflection: APC<-65dB,
UPC<-55dB Temperature Cycling:-20℃~-80℃
Polishing Grade: PC, UPC, APC
Connector Type: SC, FC, ST, LC. MU
Fiber type: SM(9/125um)
Optical performance 100% factory tested
Easy installation as plug type

Applications:

Gigabit Ethernet;
Active device termination;
Telecommunication networks;
Video; Multimedia;
Industrial;
Military;
Premise installations;

Specifcation:

Items

 Single mode Multimode
PC UPC APC 62.5/125 50/125 50/125 10G
Insertion Loss <0.2dB <0.3dB
Return Loss ≥45dB ≥50dB ≥60dB ≥35dB
Durability <0.1dB typical change,
500 matings

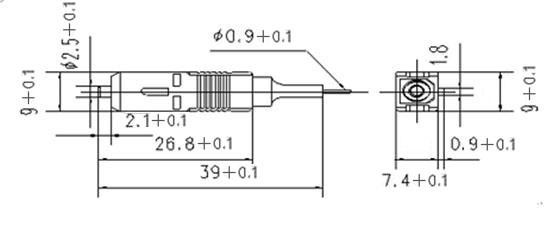

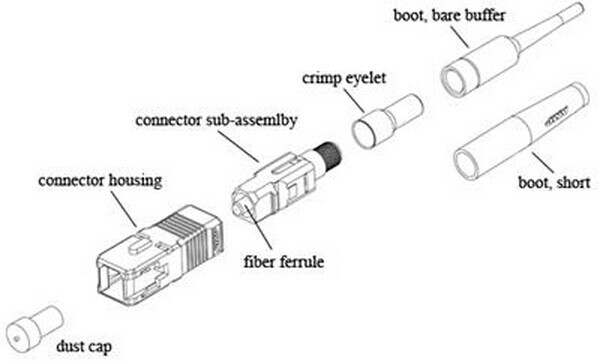

Drawing:

SC APC CCTC Fiber Optics AccessoriesSC APC CCTC Fiber Optics Accessories

SC APC CCTC Fiber Optics AccessoriesSC APC CCTC Fiber Optics Accessories
