Flangeless Fiber Optic Coupler with Shutter

Name: Flangeless Fiber Optic Coupler with Shutter
Brand: CY COM
Price: 1 USD

Flangeless Fiber Optic Coupler with Shutter Manufactures

Brand Name : CY COM

Model Number : SC-SX

Certification : ISO9001:2015 ,ISO14001:2015,ROSH,SGS

Place of Origin : Shenzhen China

MOQ : 100pcs

Payment Terms : T/T, Western Union

Supply Ability : 5 MIllion PCS / Month

Delivery Time : 3-7 days

Packaging Details : Plastic Box

Item : Auto shutter adapter

Color : Green / Blue/ Begie/ Aqua / Customized

Structure : Flange or Flangeless

Materials : PEI+ABS

Ferrule material : Ceramic

Cap color : Black / Blue / Green / Customiaed

Type : APC / UPC

Application : CATV, FTTX Network,LAN,Telecommunication

Contact Now

Single mode fiber coupler,Plastic fiber optical adapter with auto shutter,black dust cap

Description:

Fiber optic adapter is also called fiber optic coupler. It contains the interconnect sleeve, that holds the two ferrules together.It is used to provide a cable to cable fiber connection.Choose proper type according to the splice of optical fiber active connector.

Features:

SC mode used pluggable tight locking structure

UPC or APC Optional

SM or MM Optional

With/Without flange Optional

Simplex , Duplex or Quad Optional

Zirconia Sleeve ,Compact design

Low insertional loss, High return loss

Comply with IEC, Telcordia GR 326 and JIS standard

Application:

CATV System

Telecommunication networks

Test equipment

Local Area Networks(LANs)

Data processing networks

Specification:

Parameter	SC Adapter
Mode	S.M(Zirconia)	M.M(Metal)
Typical Insertion Loss (dB)	<=0.2	<=0.3
Return Loss(dB)	>=45
Mating Durability(500times)	Additional Loss<=0.1dB,Return Loss Variability<5dB
Temperature Stability (-45℃~85℃)	Additional Loss<=0.2dB,Return Loss Variability<5dB
Operating Temperature	-10 ℃~ +75℃
Storage Temperature	-40℃~+85℃

Pictures and Drawing:

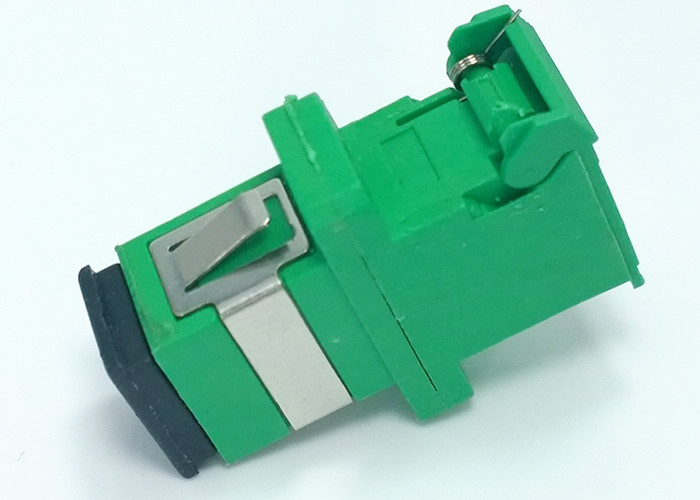

Flangeless Fiber Optic Coupler with Shutter
